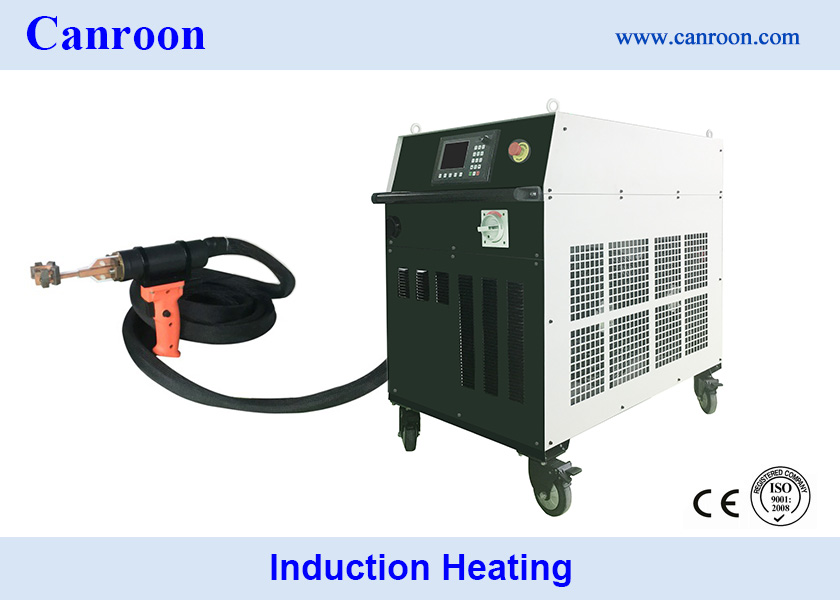

Induction Heating Brazing Machine, Copper Silver Brazing for Big Electric Motor and Transformer

  • 1
  • 2

Place of Origin : Shenzhen China

Brand Name : canroon

Certification : CE ISO9001:2008

Model Number : CR2100

MOQ : 1 piece

Packaging Details : Carton or depends on you

Delivery Time : A week after confirmed payment

Payment Terms : T/T

Supply Ability : 20 Piece/Pieces per Week

Input Power : 380V 3-Phase

Temperature : Up to >1000℃

Transportation : By sea or By Air

Resonance : Series Resonance

Control Model : Digital Control

Rated Output : 10~50KW

Contact Now

Induction Heating Brazing Machine, Copper Silver Brazing for Big Electric Motor and Transformer







Due to its perfect portability and high efficiency, CR2100 series are a great choice for on-site or automatic brazing work, especially for big electric motor and transformer.



For a typical electric motor, the brazing part involves big quantities of lead wire and coil in stator and rotor:



Induction Heating Brazing Machine, Copper Silver Brazing for Big Electric Motor and Transformer



Customized Induction Coil / Heating tool



We customize induction coil to adapt the different shape and size of brazing parts.



Induction Heating Brazing Machine, Copper Silver Brazing for Big Electric Motor and Transformer



Hand-held transformer



Hand-held transformer are designed for your easy manual manipulation, and also can be integrated into robot arm for automatic production.



Induction coils are easy for assemble and dismantle from hand-hold transformer, so you can connect with different coil for different application.



Induction Heating Brazing Machine, Copper Silver Brazing for Big Electric Motor and Transformer



CR2100 Brazing System:



Induction Heating Brazing Machine, Copper Silver Brazing for Big Electric Motor and Transformer



              Model  Rated input  voltage &  frequency  Rated input power  Rated input  current       Output Freq.
 CR2100-010B-14TW1

 3-phase/400V

 (±20%) 50/60Hz

  10KW  15A  10~40KHz
 CR2100-015B-14TW1  15KW  22A  10~40KHz
 CR2100-020B-14TW1  20KW  30A  10~40KHz
 CR2100-025B-14TW1  25KW  37A  10~40KHz
 CR2100-030B-14TW1  30KW  45A  10~40KHz
 CR2100-035B-14TW1  35KW  53A  10~40KHz
 CR2100-040B-14TW1  40KW  60A  10~40KHz
 CR2100-050B-14TW1  50KW  75A  10~40KHz



<> Built-in Chiller, water-cooling, no need for external chiller connection.

<> Rapid heating, reaching 800~900℃ within 3~5 seconds.
